Land Cruiser 80 Piggyback Shock Absorber With Adjustable Damping

Brand Name : STR

Model Number : ST8056/ST8057

Certification : ISO90001,2015

Place of Origin : China

MOQ : 5 sets

Price : USD150-200/PC

Payment Terms : T/T

Supply Ability : 10000PCS/month

Delivery Time : Depend on the quantity of the order

Packaging Details : Cartons

Damping : Mono Tube

Compatibility : Only for LC80

Travel : 2/3/4 inches

Technology : Piggyback Reservoir

Mounting Type : Eyelet

Weight : 6.5KGS/PC

Product Type : Offroad Vehicle Shock

Material : Steel/Aluminum

Color : Red (or Customized)

Spring Rate : Customizable

Size : 190mm x 51mm

Adjustment : Rebound, Low-speed Compression, High-speed Compression

Spring Type : Air

type : STR Shocks

application : off road shocks

feature : adjustable shock absorbers

other name : vehicle shock absorber

product type : shock absorbers

Contact Now

Land Cruiser 80 4x4 Shock Absorber - Offroad Suspension Vehicle Shock

Product Specifications

Attribute	Value
Damping	Mono Tube
Compatibility	Only for LC80
Travel	2/3/4 inches
Technology	Piggyback Reservoir
Mounting Type	Eyelet
Weight	6.5KGS/PC
Product Type	Offroad Vehicle Shock
Material	Steel/Aluminum
Color	Red (or Customized)
Spring Rate	Customizable
Size	190mm x 51mm
Adjustment	Rebound, Low-speed Compression, High-speed Compression
Spring Type	Air

Premium Features

100% bolt-on performance for easy installation
Increased wheel travel for superior offroad capability
Large 2.5" shock bodies increase fluid capacity for smoother operation
Factory tuned for optimal ride quality on all terrains
Extensive lab and real-world testing for perfect damping curves
Built with premium materials to precise tolerances
Fully rebuildable, serviceable and tunable for long-term performance
External reservoirs for enhanced heat dissipation and sustained performance
Optional Wide Range Compression Adjuster with 24 precise settings

Technical Parameters

Dampening Adjustment 1	24 steps compression
Dampening Adjustment 2	30 steps rebound
Top Strut	CNC 6061-T6 Aluminum
Oil Hose Material	14mm Teflon
Oil Hose Length	600mm
Spring Style	Coil spring
Oil Hose Joint	Swivel Banjo Fitting
Gas Reservoir Length	200MM
Shock Body	Steel or Aluminum alloy
Shock Body OD	66mm
Piston Rod OD	22mm
Bushes	Silent block steel rubber bushes
MOQ	5 sets
Color Options	Red/Golden/Black/Green/Blue
Valve Core	Included

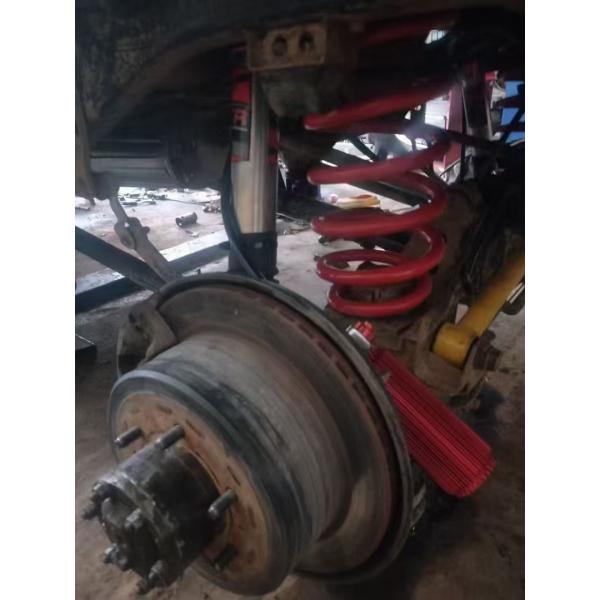

Installation Images

Land Cruiser 80 Piggyback Shock Absorber With Adjustable Damping
